Pt-LCD
Pt100, Pt500 & Pt1000 Logger

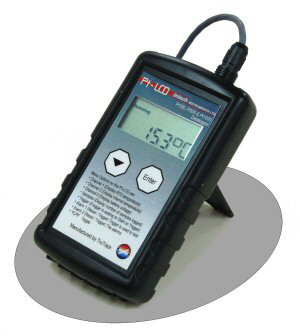

The Pt-LCD is a handheld, high resolution (16 bit)
temperature datalogger with a liquid crystal display. The logger connects to an external RTD probe and also has an internal thermister sensor. The logger accepts Pt-100, Pt-500 and Pt-1000 probes. The display shows the RTD temperature, logger internal temperature, battery voltage, logger and alarm status. This logger is designed for indoor use (IP 40) but can be supplied with a TruTrack Seahorse Logger Enclosure for outdoor use.  		Pt-LCD_300pix.jpg (25694 bytes)


Specification:
RTD Input:
RTD Sensor
Connector



The Pt-LCD's Hirose Electronics 6 pin HR30-6P-6P Connector Socket can be used to connect to 2 wire, 3 wire and 4 wire Pt100, Pt500 and Pt1000 temperature probe.
Hirose Electronics 6 pin HR30-6P-6P Connector Socket

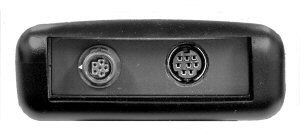

(Shown on left in this photo)

Hirose Electronics 6 pin HR30-6P-6P Connector Socket
   RS part number 536-5683
   Digikey part number HR580

2 wire RTD connection
   A to Pin4, B to Pin2, Pin2 to Pin3, Pin4 to Pin5

3 wire RTD connection
  A to Pin4, B to Pin2, B to Pin3, Pin4 to Pin5

4 wire RTD connection
   A to Pin4, A to Pin5, B to Pin2,  B to Pin3
Accuracy

Note: This is the logger accuracy only and does not include inaccuracies in the particular RTD probe used.
Type at Minimum Temp at 0 º C at Max Temp
Pt100 ± 1.0º C ± 0.5º C ± 1.0º C
Pt500 ± 1.0º C ± 0.5º C ± 1.0º C
Pt1000 ± 2.0º C ± 1.0º C ± 1.0º C
Temperature  Coefficient ± 0.01% per º C of logger Temperature
Temperature Range
Type Min Temp   MaxTemp
Pt100 -200º C   600º C
Pt500 -200º C   600º C
Pt1000 -200º C   600º C
Resolution 0.1º C
Internal Temperature:
Sensor Type Thermister
Linear accuracy over range ± 0.3º C (0º C to 70º C)
Repeatability ± 0.1º C
Long term stability ± 0.1º C
Logger:
Working Temperature -20º C to +70º C
Storage Temperature -30º C to +70º C
Sampling Rate
1 second minimum
10 hours maximum
in 1 second intervals
Storage capacity
522,240 samples logging RTD only
362 days with 1 min logging interval
4.9 years with 5 min logging interval
Alarms
Two independent Alarms
Triggered on any combination of six user configurable Alarm Conditions
Both alarms can be configured to send SMS messages
Two Open Collector Alarm outputs
Alarms can be visually checked on the LCD Display or by using the Omnilog Software
Start modes
Start immediately
Start on date/time
Start on condition (eg temperature > 20° C)
Start on trigger (push button on logger)
Stop modes
Stop when memory is full
Stop on date/time
Loop around (continues logging)
Logging Modes
Each channel can be set to log any combination of:
  • Point readings
  • Average reading
  • Maximum reading
  • Minimum reading
Battery
User Replaceable
Two 3.6V Lithium AA cells
One to Five years depending on usage.
The data is retained in the case of battery failure.
Battery Status Monitor on LCD display and in OmniLog Software
Download Time 9min 30sec for Full Logger
Case material ABS Plastic
IP Rating 40
Weight 185g
Size 130mm x 80mm x 30mm
Communication
Connecter
Pinout		 Mini Din Pinout.jpg (47562 bytes)The Pt-LCD has a 8 pin Mini-DIN female socket.

Pin 1  Common
Pin 2  RS232 RX (out of logger)
Pin 3  RS232 TX (into logger)
Pin 4  RS232 CTS (out of logger)
Pin 5  RS232 RTS (into logger)
Pin 6  Alarm 1 Open Collector Output
Pin 6  Alarm 2 Open Collector Output
Pin 8  Power 5 to 16V DC

A DLC8 download cable is required to connect the Pt-LCD to a computer


Liquid Crystal Display Operation

 The Pt-LCD displays logger status and alarm status continuously and can be set to show the RTD temperature, the internal logger temperature, the battery voltage and the number of logged samples.

Logger status is shown as:
If the logger is waiting for “Start on Trigger” it can be started in the field from the Menu provided on the display.
If an Alarm has been triggered the display will show:

If both Alarms are triggered “Alarm” will be displayed
continuously and “1” and “2” will flash consecutively.

 Low Batt will be displayed if the internal batteries requires
 replacement

Pt-LCD Menu Options

Pressing the Enter button on the front panel of the Pt-LCD
activates the Menu Display. The Down Arrow can then be used to scroll down through the various Menu Options. When the required menu option is displayed, press Enter to select this option. Menu Options on the Pt-LCD are:

The display will update at 1 second intervals for 1 minute after any button is pushed. It will then slow down to 10 second display updates (this is a power saving feature).
