Values View

>>> View: Values View

>>> Alt+V

>>>

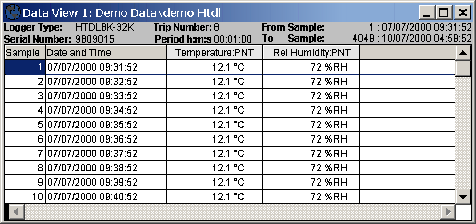

The Values View function displays a View of the Active Dataset (the Dataset displayed in the Dataset Selector on the Toolbar) with the data shown in Values mode.

A number of Block Mark and Display functions are available in this mode. These are selected from a popup menu that is displayed on a right mouse click with in the Values display. These functions include:

Start of block

Marks the current sample as the start of a block of data within the dataset. The block can be used to display graph and statistics for a block of data within a aset

End of Block

Marks the current sample as the end of a block of data within the dataset. The block can be used to display graph and statistics for a block of data within a Dataset

Clear Block

Clears a block so that the entire dataset can be viewed in graph and statistics mode

Go to Sample...

Finds a Sample by number, in the Values section of a Dataset View

Go to Date Time...

Finds a Date Time in the Values section of a Dataset View

Values View

Sets the Dataset View to Values only.

Statistics View

Sets the Dataset View to Statistics mode only. Any blocks set in the previous values mode will be reflected in the new Statistics View

Graph View

Sets the Dataset View to Graph mode only. Any blocks set in the previous values mode will be reflected in the new Graph View

Values and Statistics

Sets the Dataset View to a combination of both Values and Statistics modes

Graph and Values

Sets the Dataset View to a combination of both Graph and Values modes

Graph and Statistics

Sets the Dataset View to a combination of both Graph and Statistics modes
