L Bar & T Bar Equipment Arms


The L Bar and T Bar Equipment Arms are a mounting system for attaching loggers, solar radiation shields, wind speed anemometers, wind vanes, light sensors and cell phone or radio communications systems to towers, poles and buildings.

The L Bar arm is a 400mm long section of "Unistrut" steel that has been ElectroZinced to give superior outdoor protection and then White Powder coated. The Arm has an attachment plate with holes that can be used for mounting to 50mm (2inch) or 25mm (1inch) diameter pipe or bolting to posts or buildings. The arm is supplied complete with two 50mm (2inch) U bolts, plastic capping strip to cover the underside of the arm and an end cap to protect the open end.

The T Bar arm is 800mm long with the mounting plate in the centre of the arm. This arm is specifically designed to give good seperation between wind speed anemometers and wind vanes.






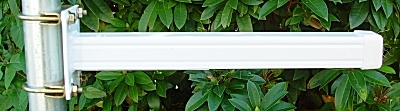

The L Bar Equipment Arm is an inverted U section of Unistrut 400mm long. Loggers and Remote Probe Controllers can be housed inside the arm.

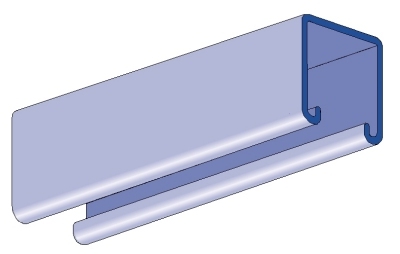

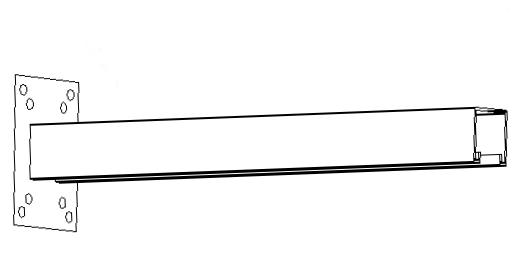

 The Unistrut is 41mm square in section. Fasteners slid inside the arm are used to connect Solar Radiation Shields, Leaf Wetness sensors and Communication equipment.

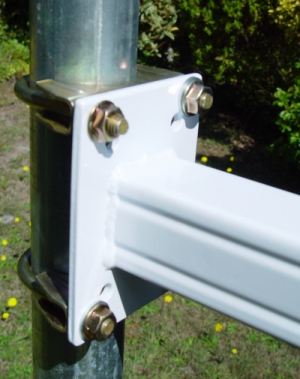

white_clamp.jpg (78682 bytes) The Arm has an attachment plate with holes that can be used for mounting to 50mm (2inch) or 25mm (1inch) diameter pipe or bolting to posts or buildings. The arm is supplied complete with two 50mm (2inch) U bolts

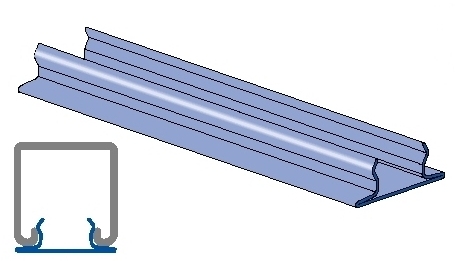

 The L Bar Equipment Arm is supplied with a plastic capping strip to cover the underside of the arm. In addition to supporting loggers and remote probe controllers it can also be used to mount connector sockets for sensors and communication equipment and to keep cables tidy within the arm.

white_L_arm_ano.jpg (145399 bytes) Wind speed anemometers, wind direction vanes and light sensors can be attached to the top of the L Bar Equipment Arm. Cables from the sensors pass through a hole drilled in the arm into the logger or remote probe controller within the arm. This keeps the cabling tidy and out of the weather.

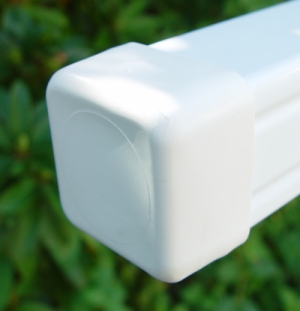

white_end_cap.jpg (39446 bytes) An End Cap is also supplied to protect equipment and cables inside the Unistrut. This can be easily removed to connect download cables to loggers inside the arm if required.
TBar_LBar_400x300.JPG (18245 bytes) The T Bar is specifically designed to give good seperation between wind speed anemometers and wind vanes. The total Length of the T bar is 800mm. The bar is 41mm U section and is supplied with a plastic capping strip to cover the underside of the arm and two end caps
