sensors are suitable for the measurement of liquid or gas pressure including difficult
media such as contaminated water and mildly corrosive liquids or gasses. There are three
pressure ranges available:
These are gage sensors so the back of the sensor is ported to the atmosphere. They should not be used if the back of the sensor will be under pressure or will experience high humidity.

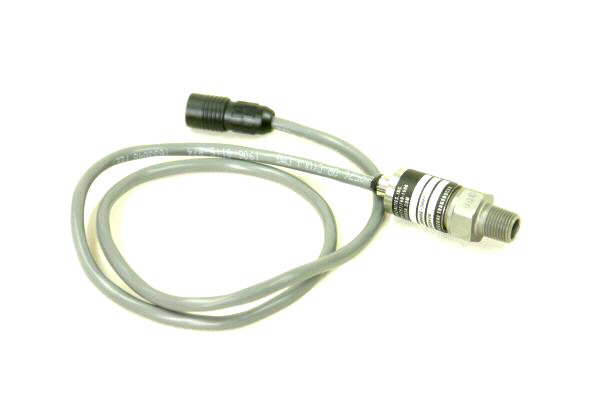

The sensors for the P-LCD (See photo top right) plug directly into the logger.

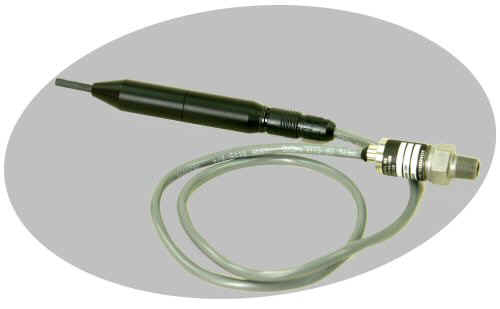

The sensors for the GP-HR and GP-MC plug into an amplifier cable that connects to the loggers. (See photo bottom left) The cable on the sensor is 500mm long. The cable from the amplifier to the logger is 1000mm so the combined length of cable is 1500mm.
Once the P-LCD has been calibrated with one sensor a different sensor can be connected with a small loss of accuracy (see Accuracy Un-Calibrated). On the GP-HR and GP-MC the amplifier and sensor should not be swapped between loggers without recalibration.
Available pressure Ranges
